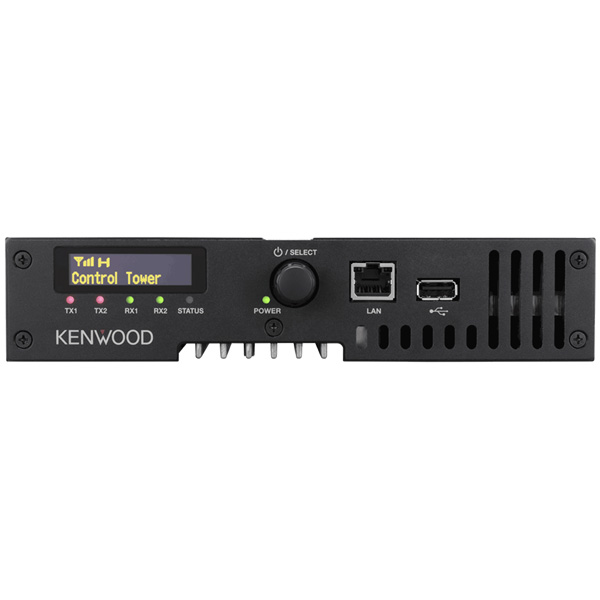

NXR-1700 / 1800
NXR-1700 / 1800 (DMR / Analogue / NXDN) DMR Repeater
This compact, multi-mode conventional repeater – key digital communications equipment that is a KENWOOD specialty – supports the features and performance to make it a worthy successor to the existing DMR and NXDN repeaters such as the TKR-D710/D810 and NXR-710/810. The digital protocol is chosen when ordering to set up individual units for either DMR or NXDN, with the option of keeping the factory default setting of FM analog.
To discuss our full range of solutions get in touch with Audiolink today by giving us a call on 020 8955 1100 or click ‘Request a call back’ button and fill in our enquiry form.
The Kenwood DMR range of digital Base Station / Repeaters offer the capability to accommodate more channels or user groups and operate across a longer range or wider area in a cost effective communications infrastructure for single-site/local area applications. They share benefits of digital radio communications in providing increased range, improved sound quality and advanced security capabilities.
SOLID REPEATER PERFORMANCE
Capable of outputting up to 50 W in the 136–174 MHz frequency range, and up to 40 W in the 400–MHz range, the NXR-1700 / 1800 repeater is compatible with the DMR Tier II air interface operating in both digital conventional and FM analogue conventional modes.
CONVENTIONAL IP NETWORK
To further expand coverage, you can employ IP connectivity to link multiple conventional repeaters installed in different sites. Each repeater is equipped with a KTI-5 Network Interface Unit to provide the required Ethernet capability.
MIXED-MODE
Kenwood DMR repeaters can be configured to operate in Mixed-Mode which allows the repeater to switch automatically between analogue and digital, depending on what signal has been received. If an analogue radio transmits, the repeater switches automatically to analogue mode to repeat the analogue call, if a digital radio transmits, then the repeater switches automatically to digital mode to repeat the digital call. The repeater only repeats the calls that are qualified by CTCSS/DCS (QT/DQT) in analogue or Colour Code in digital mode. While the repeater repeats one analogue call at a time, it can repeat 2 digital calls at a time, one on each logical channel.
DIGITAL & ANALOGUE OPERATION
Operates in DMR Digital and FM Analogue modes, even on the same channel. Auto-senses Received Mode (Digital or Analogue).
Features
- 50 – 1 W RF Output Power (up to 50 W @ 50%, 25 W @ 100% Duty Cycle)
- Light, Compact and Space-Efficient to fit 2 Repeaters in a 1 U Height, 19-inch Rack
- Large 1.71-inch OLED with Icons and Numeric Display
- Thermal-Controlled Cooling Fan
- Dual Digital Protocol: DMR Tier II / NXDN Conventional (programmable one at a time)
- Non-repeat Simplex / Semi-Duplex Mode for Analog and NXDN Digital
- Multi-Site Conventional IP Network up to 16 Sites – for both Digital and Analog (Software option)
- Hot Standby System Redundancy
- SNMP Protocol for Direct Reporting to a Generic System
- IP Remote Control Interface (IPRCI)
Technical Specifications
Frequency range
136-174 MHz
Number of Channels
NXR-1700: 136 – 174 MHz
NXR-1800: 400 – 470 MHz
Channel Spacing
Analogue: 25 / 20 / 12.5 kHz
Digital: 12.5 / 6.25 kHz
Dimensions W x H x D
Incl. Projections: 214.5 x 44.0 x 242.9 mm
Excl. Projections: 208.5 x 44.0 x 211.5 mm
Weight
1.9 kg
RF Power Output
NXR-1700: 50 – 1 W (50 W @ 50% Duty, 25 W @ 100 % Duty)
NXR-1800: 40 – 1 W (40 W @ 50% Duty, 25 W @ 100 % Duty)
