SL1600

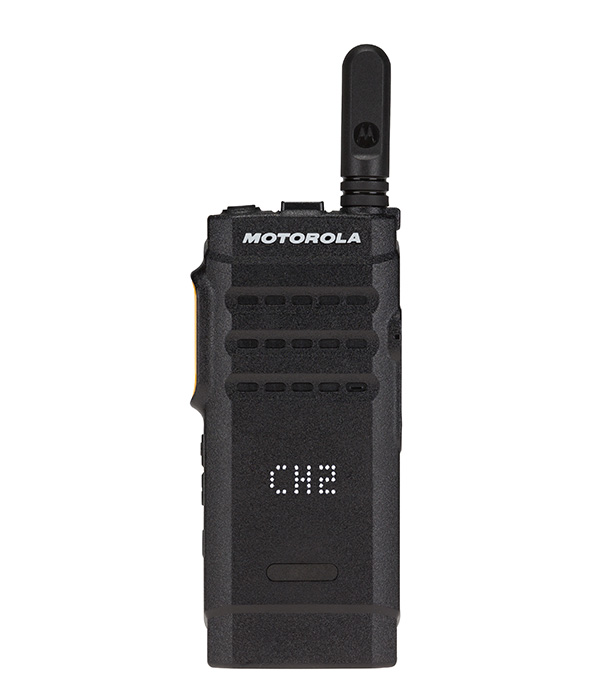

MOTOTRBO™ SL1600 Digital Two-Way Radio
The MOTOTRBO SL1600 digital two-way radio provides reliable push-to-talk communication for the mobile, everyday user in an ultra-slim and rugged profile.
To discuss our full range of solutions get in touch with Audiolink today by giving us a call on 020 8955 1100 or click ‘Request a call back’ button and fill in our enquiry form.
The SL1600 is boldly designed to keep you efficiently connected.
The MOTOTRBO SL1600 digital two-way radio provides reliable push-to-talk communication for the mobile, everyday user in an ultra-slim and rugged profile. Whether you’re working in the field or at a black-tie event, the SL1600 is boldly designed to keep you efficiently connected.
Measuring only 22mm thick, the SL1600 is ultra-portable. A stubby antenna, curved edges and rugged frame make the SL1600 the perfect work partner. It can be easily carried in pockets or bags without snagging or bulging.
Designed for easy and intuitive use, the SL1600 has a side volume control, dedicated power button, prominent push-to-talk button, and top toggle channel switch to enable quick one-hand access. Channel “fast toggle” allows users to scroll through 10 channels at a time.
The SL1600 is outfitted with the latest technology for performance and ease of use. The shatterproof Active View display uses a matrix of LEDs behind the radio housing to communicate radio information and shuts off when not in use to conserve battery life. The SL1600 features Range Max technology: an advanced radio design and patented antenna which delivers enhanced range while maintaining a slim profile and long battery life.
The SL1600 is built to last. IP54 rated for dust and water resistance, it can be used even in harsh environments. This radio can survive many drops and tumbles. It has also been proven tough in Motorola’s gruelling Accelerated Life Test, where the radio is tested against a simulated 5 years of hard service before it is accepted.
ULTRA-SLIM
Measuring only 22mm thick, the SL1600 redefines portability. It can be carried easily in a pocket or bag without catching or bulging.
SIMPLE OPERATION
The SL1600 features a separate power button, top channel toggle switch, side volume control buttons, and prominent push-to-talk button to support one-hand radio operation.
DUAL CAPACITY DIRECT MODE
Utilise the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel without the need for a repeater.
VOICE ANNOUNCEMENT
Audible prompts confirm operations on your radio, allowing you to keep your eyes on the job.
MicroUSB CONNECTIVITY
Efficient charging and easy programming.
ACTIVE VIEW DISPLAY
Shatterproof Active View display uses hidden LED lighting to communicate channel, radio, and volume information crisply in both daytime and nighttime situations.
ANALOG/DIGITAL
The SL1600 features a separate power button, top channel toggle switch, side volume control buttons, and prominent push-to-talk button to support one-hand radio operation.
RANGE MAX RECEIVER
An advanced radio design and patented antenna which delivers enhanced range while maintaining a slim profile and long battery life.
Features
- Voice announcement
- Group call
- Programmable buttons
- Talkaround
- One to one calling
- Missed call alerts
- IP54 Rated
Technical Specifications
Frequency range
VHF: 136-176 MHz
UHF:403-470 MHz
Power output
1W (Minimum)
2W (Maximum, Analogue)
3W (Maximum, Digital)
Dimensions H x W x D (with standard battery)
126 X 55 X 22 mm (4.95 X 2.17 x 0.87 in)
Weight (With standard battery)
VHF: 169g (5.96 oz)
UHF: 166g (5.84 oz)
Number of channels
99 channels
Channel spacing
12.5, 20, 25
Environmental Specifications
Mil spec: 810 C, 810 D, 810 E, 810 F, 810 G
IP Rating: IP54
Antennas

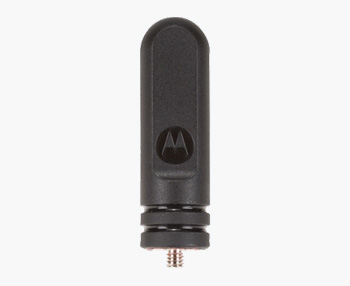

Motorola PMAE4095
UHF Stubby Antenna (430-470MHz)
Motorola PMAE4094
UHF Stubby Antenna (420-445MHz)

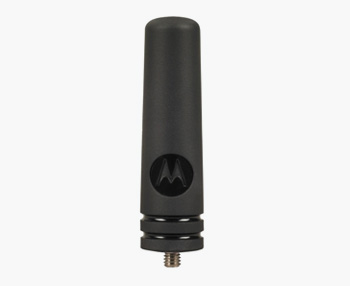

Motorola PMAD4146
VHF Stubby Antenna (156-174MHz)

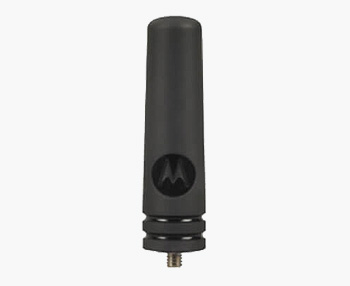

Motorola PMAD4144
VHF Stubby Antenna (136-144MHz)
Audio

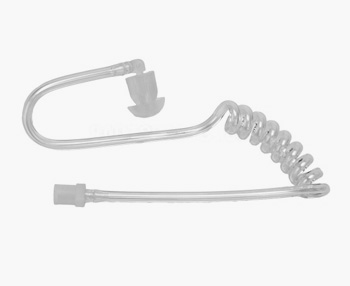

Motorola RLN6242
Replacement Quick Disconnect Acoustic Tube

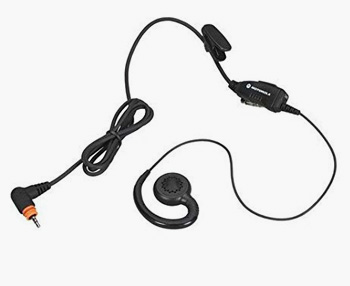

Motorola PMLN7189
Swivel earpiece with in-line mic and PTT

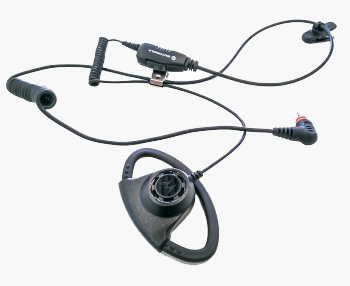

Motorola PMLN7159
Adjustable D Style Earpiece with Inline Mic/PTT

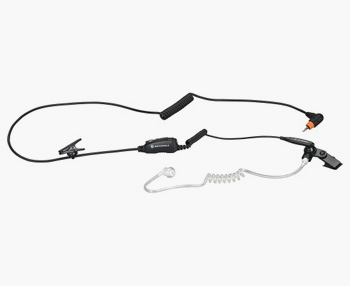

Motorola PMLN7158
Surveillance earpiece with Mic and PTT Combined (Black)

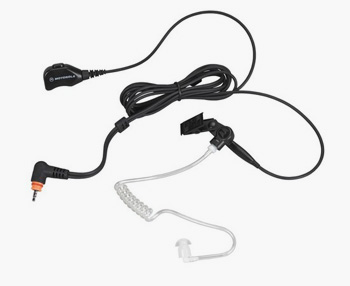

Motorola PMLN7157
2-Wire Earpiece with clear acoustic tube (Black)
Carry Solutions
Motorola PMLN7190
Radio Carry Holder with Swivel Belt Clip
Motorola PMLN7128
Swivel Belt Clip (Heavy Duty)
Charging and Power

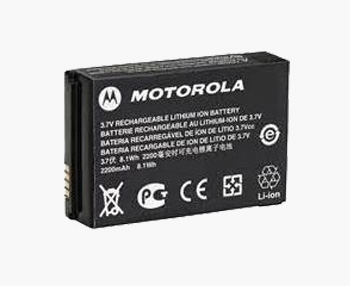

Motorola PMNN4468
Li-Ion 2300mAH Battery
Motorola PMLN7162
Multi-Unit Desktop Charger (UK Plug)

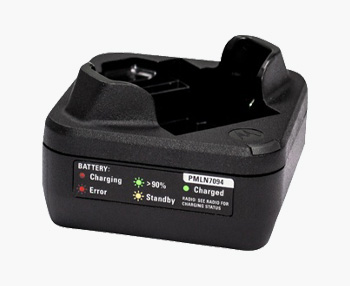

Motorola PMLN7163
Single Unit Charger(UK)
Motorola PS000042A13
Switch Mode Power Supply (UK)
Manufacturer | Motorola Solutions |
---|---|
Motorola Solutions | SL1600 |
