DP4600e/4601e

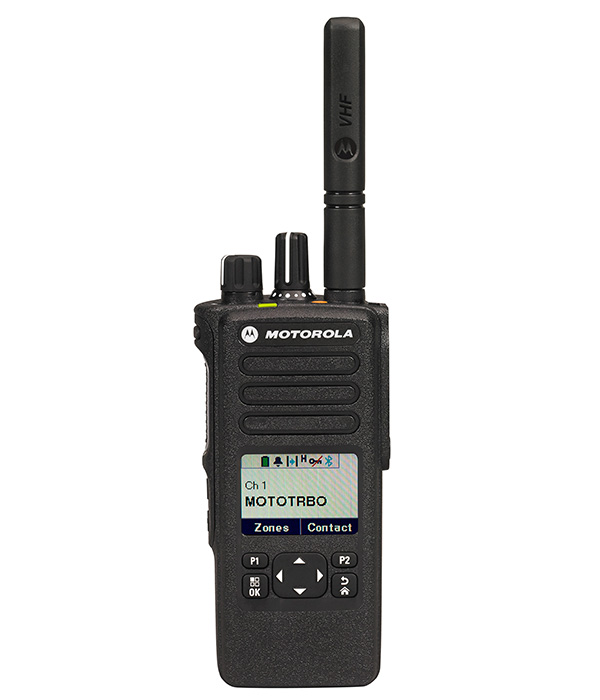

MOTOTRBO™ DP4600e/4601e Digital Two-Way Radios
The MOTOTRBO DP4600e digital two-way radio is designed for the skilled professional who refuses to compromise.
To discuss our full range of solutions get in touch with Audiolink today by giving us a call on 020 8955 1100 or click ‘Request a call back’ button and fill in our enquiry form.
The Digital Two-Way Radios that keeps you Completely Connected.
With this dynamic evolution of MOTOTRBO™ digital two-way radios, you’re better connected, safer and more productive. The MOTOTRBO DP4600e digital two-way radio is designed for the skilled professional who refuses to compromise. With high-performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organisation.
CONNECTED
The MOTOTRBO DP4000e Series is a family of ETSI DMR Standards compliant digital radios that delivers operation-critical voice and data communications. Bluetooth® audio lets you talk without wires, integrated Wi-Fi® enables remote software upgrades and indoor and outdoor location- tracking capabilities give you total visibility of your resources. With support for trunking as well as legacy analogue technology, you can keep your organisation connected as it grows.
PRODUCTIVE
Text messaging and Work Order Ticketing simplify complex communications, and data capabilities support advanced applications. Featuring a powerful audio amplifier, these radios deliver loud, clear speech, with industrial noise cancellation for better intelligibility. The latest energy technology delivers up to 28 hours of battery life for 3-shift working, and an improved receiver boosts range by up to 8%.
SAFE
Safeguard your staff with responsive push-to-talk technology.The prominent orange emergency button on DP4000e Series radios summons help with one touch, using Transmit Interrupt to clear a channel when necessary. An integrated accelerometer senses if you’ve fallen and can automatically call for assistance (DP4401e, DP4601e, DP4801e). The radio is tested to tough military standards and is waterproof to IP68. It won’t let you down.
Features
- Integrated accelerometer for optional Man Down (DP4401e, DP4601e, DP4801e)
- Bluetooth® 4.0
- Indoor location tracking
- Integrated Wi-Fi®
- Over-the-air software updates
- Enhanced audio quality
- Improved expandability
- Better battery life (up to 28 hours)
- Better range (up to 8%)
- Better waterproofing (IP68)
The DP4000e Digital Two-Way Radio Series includes:
DP4401e
DP4400e
DP4601e
DP4600e
DP4801e
DP4800e
Technical Specifications
Frequency range
VHF: 136-176 MHz
UHF: 403-527 MHz
Power output
UHF, 300Mhz: 1W/4W
VHF: 1W/5W
Dimensions H x W x D (with standard battery)
DP4400e/DP4401e: 130 x 55 x 34 mm (5.1 x 2.2 x 1.4 in)
DP4600e/DP4601e: 130 x 55 x 36 mm (5.1 x 2.2 x 1.4 in)
DP4800e/DP4801e: 130 x 55 x 36 mm (5.1 x 2.2 x 1.4 in)
Weight (With 1400mAh LiIon battery)
DP4400e/DP4401e: 290 g (10 oz)
DP4600e/DP4601e: 315 g (11 oz)
DP4800e/DP4801e: 315 g (11 oz)
Number of channels
DP4401e/DP4400e: 32 channels
DP4601e/DP4600e: 1000 channels
DP4801e/DP4800e: 1000 channels
Channel spacing
12.5, 20, 25
Environmental Specifications
Mil spec: 810 C, 810 D, 810 E, 810 F, 810 G
IP Rating: IP68
Antennas
Motorola PMAE4070
UHF Stubby Antenna (440-490MHz)
Motorola PMAE4069
UHF Stubby Antenna (405-450MHz)
Motorola PMAD4119
VHF Stubby Antenna (136-148MHz)
Motorola PMAD4116
VHF Helical Antenna (144-165MHz)
Audio
Motorola PMLN5976
MAGONE Earset with In-Line Microphone and PTT
Motorola NNTN8459
1-wire Surveillance Kit (Low Noise) – Black
Motorola PMLN6127
IMPRES 2-wire Surveillance Kit – Black
Motorola PMLN5973
MAGONE Earreceiver with In-Line Microphone and PTT
Motorola PMMN4024
Remote Speaker Microphone with audio jack
Motorola PMLN7396A
Adjustable D-style Earpiece for RSM
Carry Solutions
Motorola PMLN5839
Leather Carry Case with belt loop
Motorola PMLN5845
Nylon Carry Case with 3″ Fixed Belt Loop for Non-Display Radio
Motorola PMLN7008
2.5″ Belt Clip
Motorola HLN9985B
Waterproof Bag
Motorola HLN6602A
Universal Nylon Chest Pack
Charging and Power
Motorola PMNN4409BR
Li-Ion Battery 2250mAH (Typical) CE
Motorola PMNN4407BR
Li-Ion Battery 1650mAH (Typical) CE
Motorola PMNN4412
NiMH Battery 1400mAH (Typical) CE
Motorola WPLN4214
IMPRES Multi Unit Charger (UK Plug)
Motorola WPLN4254
IMPRES Single Unit Charger
| Manufacturer | Motorola Solutions |
|---|---|
| Motorola Solutions | DP4600e/4601e |
