DP3661e

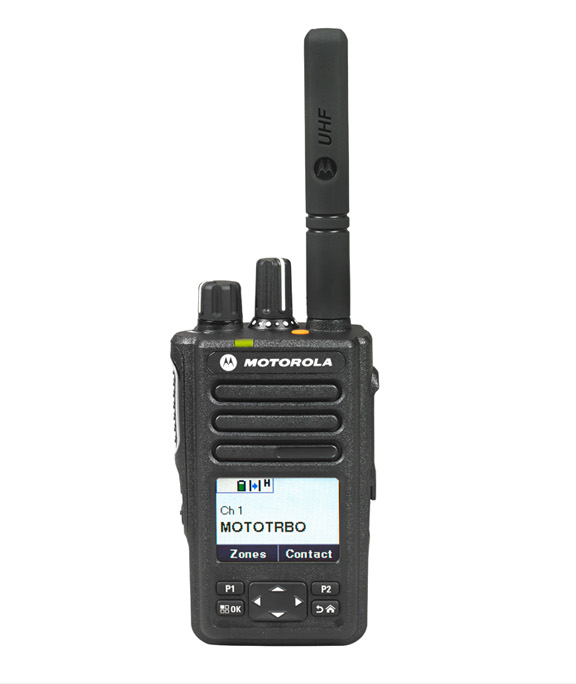

MOTOTRBO™ DP3661e Digital Two-Way Radios
The MOTOTRBO DP3661e digital two-way radio is designed for the mobile professional who needs effective communications.
To discuss our full range of solutions get in touch with Audiolink today by giving us a call on 020 8955 1100 or click ‘Request a call back’ button and fill in our enquiry form.
With the MOTOTRBO™ DP3661e compact portable two-way radio, you’re ready for anything.
With this dynamic evolution of MOTOTRBO™ digital two-way radios, you’re more agile, better connected and safer. The MOTOTRBO DP3661e digital two-way radio is designed for the mobile professional who needs effective communications. With a compact design and high-performance integrated voice and data, these next-generation radios deliver comprehensive connectivity to your organisation.
AGILE
The DP3000e Series is a tough and compact ETSI DMR Standards compliant digital radio. Its small form factor makes it conveniently portable, with an efficient short antenna that won’t get in your way. It’s tested to military standards for extreme ruggedness and is rated IP68 for almost complete immunity to dust and water. It won’t let you down even in harsh environments.
SAFE
Safeguard your staff with responsive push-to-talk technology. The prominent orange emergency button on the DP3000e Series summons help with one touch, using Transmit Interrupt to clear a channel when necessary. An integrated accelerometer senses if you’ve fallen and can automatically call for assistance.
CONNECTED
The DP3000e Series delivers operation-critical voice and data communications. Bluetooth® audio lets you talk without wires, integrated Wi-Fi enables remote software updates and indoor and outdoor location-tracking capabilities give you total visibility of your resources. The full-colour display model provides easy viewing of additional information such as contact lists, text messages and radio status. With support for trunking as well as legacy analogue technology, you can keep your organisation connected as it grows.
Features
- Integrated Accelerometer For Optional Man Down
- Bluetooth® 4.0
- Indoor Location Tracking
- Multi-Constellation GNSS For Increased Location Accuracy
- Integrated Wi-Fi®
- Over-The-Air Software Updates
- Enhanced Audio Quality
- Improved Expandability
- Better Range (Up to 8%)
- Better Waterproofing (IP68)
- Choice Of Display or Plain Models
The DP3000e Series includes:
DP3441e: Non-display , UHF and VHF
DP36613: 5-line colour display, UHF and VHF
Technical Specifications
Frequency range
VHF: 136-176 MHz
UHF: 403-527 MHz
Power output
UHF: 1W/4W
VHF: 1W/5W
Dimensions H x W x D (with standard battery)
DP3441e: 100 x 55 x 30 mm (3.8 x 2.2 x 1.2 in)
DP3661e: 100 x 55 x 36 mm (3.8 x 2.2 x 1.4 in)
Number of channels
DP3441e: 32
DP3661e: 1000
Channel spacing
12.5, 20, 25
Environmental Specifications
Mil spec: 810 C, 810 D, 810 E, 810 F, 810 G
IP Rating: IP68
Antennas
Motorola PMAD4121
VHF Stubby Antenna (160-174MHz)
Motorola PMAE4070
UHF Stubby Antenna (440-490MHz)
Motorola PMAE4069
UHF Stubby Antenna (405-450MHz)
Motorola PMAD4119
VHF Stubby Antenna (136-148MHz)
Audio
Motorola PMMN4071
Remote Speaker Microphone with audio jack
Motorola PMLN6754A
3-Wire Surveillance Earpiece with Combined Mic/PTT (Black)
Motorola PMLN5727A
MagOne Earpiece with in-line microphone and PTT
Motorola PMLN6757A
Adjustable D Style Earpiece with Inline Mic/PTT
Motorola PMLN7269A
2-Wire Surveillance Earpiece with Combined Mic/PTT(Black)
Motorola PMMN4076A
Remote Speaker Microphone (IP54) with Ear Jack & Enhanced Noise Reduction
Carry Solutions
Motorola PMLN7536
Leather Carry Case with Fixed Belt Loop for Standard Battery
Motorola PMLN7042
Nylon Carry Case with Fixed Belt Loop
Charging and Power
Motorola PMNN4511
IMPRES Li-Ion 2900mAh UL-TIA4950 CE Battery
Motorola PMNN4440
Li-Ion Battery 1700mAh CE
Motorola WPLN4188A
IMPRES Multi Unit Charger (230V UK)
Motorola PMLN5194
IMPRES Single Unit Charger
| Manufacturer | Motorola Solutions |
|---|---|
| Motorola Solutions | DP3661e |
