DP1400

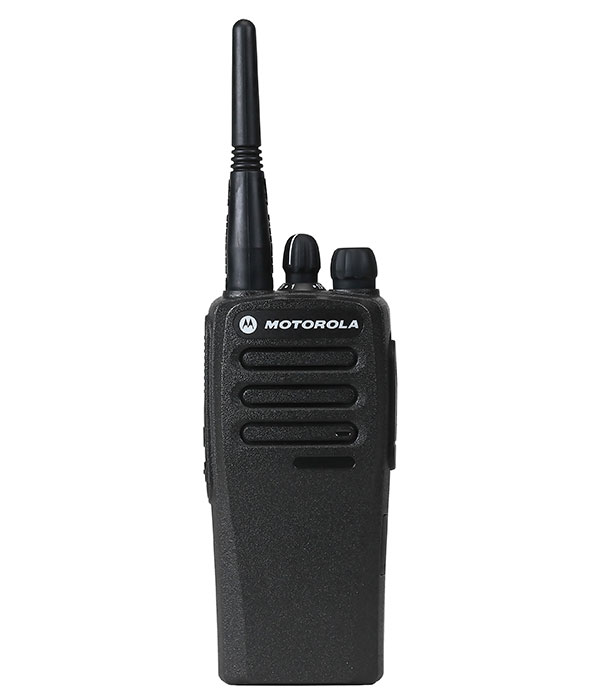

MOTOTRBO™ DP1400 Digital Two-Way Radios
The MOTOTRBO DP1400 digital two-way radio connects your workforce efficiently and has the flexibility to grow with your business.
To discuss our full range of solutions get in touch with Audiolink today by giving us a call on 020 8955 1100 or click ‘Request a call back’ button and fill in our enquiry form.
Simple Voice Communications.
Simple and affordable, the MOTOTRBO DP1400 analogue/digital two-way radio connects your workforce efficiently and has the flexibility to grow with your business. By combining the best of two-way radio functionality with the latest analogue and digital technology, the DP1400 is perfect for the everyday user who wants to stay connected. Fully compatible with the MOTOTRBO family of radios, the DP1400 has superior audio quality, outstanding coverage, long-lasting battery life and more.
You can also choose the analogue-only DP1400 model, which gives you great voice communications today, with a path to crisp and clear digital voice communications when you’re ready. All you will need is a simple software upgrade.
Whatever your needs, the DP1400 provides a simple, reliable, cost-effective communication solution to help work crews connect, coordinate and collaborate to get the job done right. Improve the efficiency of your operation with easy-to-use voice communication that’s right for you.
ANALOGUE/DIGITAL
Get all the benefits of digital, including better voice quality, better range and better battery life – but retain compatibility with your existing radio fleet. The freedom to migrate to the latest technology at your own pace.
TRANSMIT INTERRUPT CAPABILITY (decode only)
Enables a supervisor to interrupt a DP1400 user to deliver critical communication exactly when and where it’s needed.
COMPATIBLE WITH RADIO MANAGEMENT SUITE
Program your radios quickly and efficiently, with the Radio Management tool. Radios can be programmed in batches to a standardised template, giving error-free results and optimised performance.
DUAL CAPACITY DIRECT MODE
Utilise the power of the 2-slot TDMA DMR standard to double the capacity of your 12.5 kHz channel – without the need for a repeater.
IP54 RATED
Dustproof and splashproof, so you can work with confidence in challenging environments.
Features
- Programmable Buttons
- Voice Operated Transmit (Vox)
- Time Out Timer
- Talkaround
- Signalling: MDC/QCII/Digital
- Built-In Scrambling
- Scan Types: Normal, Priority, Dual Priority, Nuisance Channel Delete, Talk
- Group, All Group
- Selective Calling
- Digital Private Line
- Private Line
- Monitor Permanent (Sticky) Monitor
- Channel Scan
- Call Tones
- Busy Channel Lockout
- Audio Gain Control
- Integrated Voice And Data
- Advanced Software Features: Remote Monitor
Technical Specifications
Frequency range
VHF: 136-174 MHz
UHF: 403-470 MHz
Battery life (based on a 05 05 90 duty cycle)
NiMH (1400mAh) Battery
Analogue: 9 hours Digital : 11.5 hours
Li-Ion Slim (1600 mAH) Battery
Analogue: 10.5 hours Digital : 13.5 hours
High Cap Li-ion (2200 mAH) Battery
Analogue: 14.5 hours Digital: 18.5 hours
Dimensions H x W x D (with standard battery)
127.7 X 61.5 X 42.0 mm (NiMH 1400mAH)
127.7 X 61.5 X 39.0 mm (Slim Li-Ion 1600mAH)
127.7 X 61.5 X 44.0 mm (Li-Ion 2200mAH)
Weight (with standard battery)
406g (NiMH 1400mAH) 341 g (Slim Li-Ion 1600mAH)
346g (Li-Ion 2200mAH)
Number of channels
16
Channel spacing
12.5, 25, 20, 12.5 (6.25 efficient)
Environmental Specifications
Mil spec: 810 C, 810 D, 810 E, 810 F, 810 G
IP Rating: IP54
Antennas
Motorola PMAE4016A
Whip Antenna UHF 403-520MHz
Motorola PMAE4003A
Antenna UHF 430-470MHz
Motorola NAD6502AR
Antenna VHF 146-174MHz
Motorola HAD9743A
Stubby Antenna, VHF 162-174MHz
Audio
Motorola PMLN6535A
D-Shell Earpiece with PTT / Mic
Motorola PMLN6531A
MagOne Earpiece with in-line microphone & PTT
Motorola PMLN6530A
2-Wire Earpiece with clear acoustic tube (Black)
Motorola BDN6720A
1-Wire Ear Hook, Black
Motorola PMLN7396A
Adjustable D-style Earpiece for RSM
Motorola PMMN4029A
Remote Speaker Microphone, with Enhanced Noise Reduction
Motorola PMMN4013A
Remote Speaker Microphone, with Ear Jack & Enhanced Noise Reduction
Carry Solutions
Motorola RLN5383A
Leather Carry Case with belt loop
Motorola HLN9985B
Waterproof Bag
Motorola HLN9701B
Nylon Carry Case
Motorola HLN8255B
Spring Belt Clip (Black)
Motorola HLN6602A
Universal Nylon Chest Pack
Charging and Power
Motorola PMNN4251AR
NiMH Battery 1400mAH (Typical) CE
Motorola PMNN4253AR
Li-Ion Battery 1600mAH (Typical) CE
Motorola PMNN4254AR
Li-Ion Battery 2300mAH (Typical) CE
Motorola PMLN5191B
Desktop Rapid Single Unit Charger (UK)
Motorola PMLN6600A
Multi-Unit Charger with UK plug
Motorola PMLN7089A
Travel Charger with VPA adaptor
Manufacturer | Motorola Solutions |
---|---|
Motorola Solutions | DP1400 |
