TK-D240E / D340E

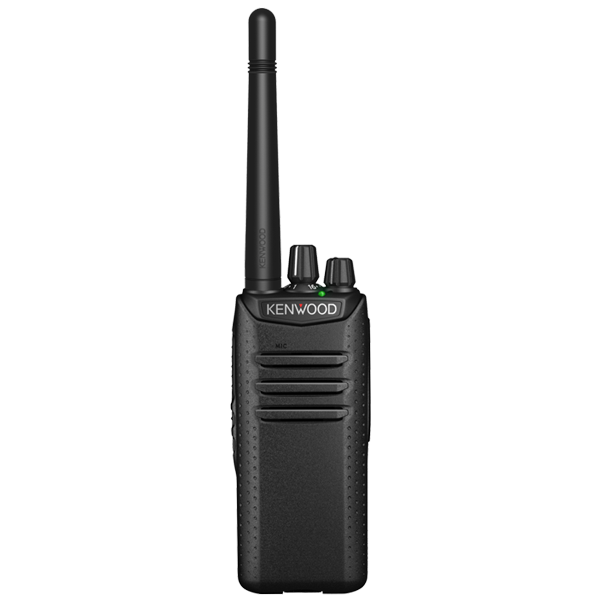

TK-D240/D340 DMR Digital Portable Radio Two-Way Radios
The Kenwood TK-D240/D340 DMR digital two-way radio are ergonomically styled yet tough enough to comply with both MIL-STD and IP54/55 environmental standards. These portables provide the features and performance needed for a wide range of workplaces – from warehouses and stations to shops and hotels.
This product has been discontinued. Get in touch to discuss an alternative product.
To discuss our full range of solutions get in touch with Audiolink today by giving us a call on 020 8955 1100 or click ‘Request a call back’ button and fill in our enquiry form.
As well as handling both analogue and digital communications, these user-friendly DMR radios can even operate in direct mode, without a repeater. They also offer such KENWOOD added value as Call Interrupt and 1-watt audio output. These truly resourceful team members will enable you to make the most of your legacy analogue equipment while also benefitting from digital communications.
TWO-IN-ONE – DIGITAL & ANALOGUE
These DMR radios can operate in both digital and FM analogue modes, switching automatically as needed. Interoperability with legacy analogue radios allows organisations to migrate to full digital at their own pace.
CLEAR, POWERFUL AUDIO
A radio’s most important quality is clarity – being able to hear, loud and clear, what the other party is saying. And these portables deliver just that. For a start, there is 1 W of audio output power, while the AMBE+2™ VOCODER technology accurately replicates natural human speech nuances for superior voice quality, even with high levels of ambient noise. Additionally, Voice Announcement can confirm the channel number, so there is no need to look at the display.
TOUGH ALL-TERRAIN
These portable radios conform to MIL-STD C/D/E/F/G standards for ruggedness, and are IP54/55 rated for water and dust intrusion, making them more than capable of withstanding harsh operating conditions.
CALL INTERRUPTION
In an emergency or whenever a user needs to interrupt a call, Call Interruption is available in both direct and repeater modes, while encoding or decoding. There is also a Lone Worker function to protect employees working alone.
LONGER BATTERY LIFE
Battery life is always important for radio users. Both Lithium-ion and Ni-MH rechargeable batteries are available. Regardless of battery type, operating hours are longer in digital mode.
SLIM STYLING
Compact form with ergonomically stylish design make these radios easy to grip and operate.
Features
- Wide 70 MHz UHF coverage
- Selectable 8- or 16-channel using channel stopper
- Scanning functions
- Embedded message
- Selective call alert LED
- Analogue signalling: QT/DQT, FleetSync, 5-tone signalling
- Compander per channel
- Squelch level
Technical Specifications
Frequency range
TK-D240: 136-174 MHz
TK-D340: 400-470 MHz
Audio Output Power
1 W @ 12 Ω
Number of Channels
32 ch in 2 zones (16 ch per zone)
Channel Spacing
Analogue: 25/20/12.5 kHz
Digital: 12.5 kHz
Dimensions H x W x D (with KNB-45L battery)
54 x 121.4 x 33.8mm
Weight (with KNB-45L battery)
285g
Environmental Specifications
Mil spec: 810 C, 810 D, 810 E, 810 F, 810 G
IP Rating: IP54 & IP55*
*The 2-pin connector cover has to be connected to the radio, or the locking bracket has to be attached to the KMC-45 external speaker microphone.
Manufacturer | Kenwood |
---|---|
Kenwood | TK-D240E / D340E |
