Hytera X1e Digital Two-Way Radio
The Hytera X1e digital two-way radio offers the perfect combination of ruggedness, versatility and refined design to enable covert communications.
To discuss our full range of solutions get in touch with Audiolink today by giving us a call on 020 8955 1100 or click ‘Request a call back’ button and fill in our enquiry form.

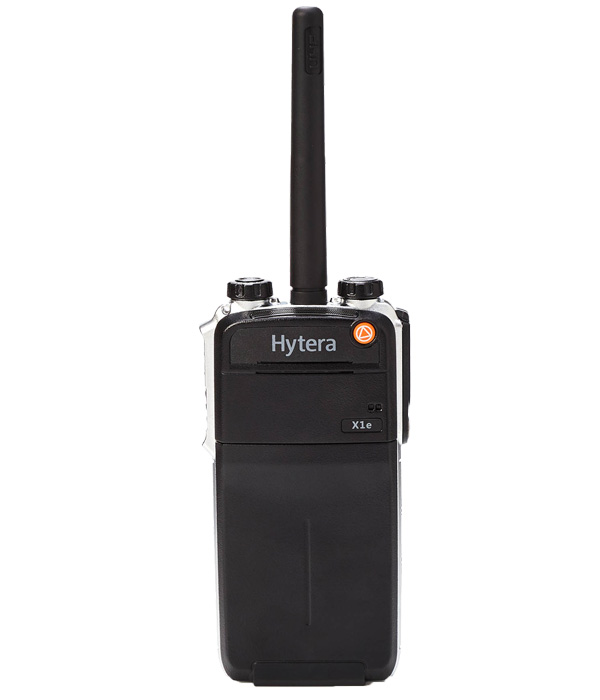

Hytera X1e Ultra-thin, discreet digital two-way radio.
The Hytera X1e handheld radio for covert and concealed applications meets the open ETSI DMR standard, and is currently the world’s smallest DMR radio on the market. It represents the perfect combination of robust versatile functionality and clever design. At just 20mm thin, the X1e is perfect for covert security operations.
ELEGANT DESIGN
With its slim design at a depth of only 20 mm, you can store the X1e unnoticed inside jacket pockets and, at just 240g, it is barely heavier than a common smartphone.
EXCELLENT VOICE QUALITY
With the combined application of the narrowband codec and digital technologies, the X1e delivers excellent voice quality, even in loud environments and in peripheral areas of radio coverage.
SUPPORTS HYTERA BLUETOOTH HEADSETS
Wireless audio accessories from Hytera can be connected directly to the X1e. As such, the radio can be carried and operated conveniently without having to route cables through the clothing.
SECURE COMMUNICATION
With the X1e, you communicate securely thanks to digital encryption for voice and data using the encryption algorithm ARC4 (40 bit) in accordance with DMRA or with the optional algorithms AES128 and AES256 (128 and 256 bit).
IMPROVED UTILISATION OF THE FREQUENCY SPECTRUM
Thanks to TDMA process, the X1e allows and assignment of the available band-width with double channel capacity. This has a clear mitigating effect on increasing spectrum scarcity.
UPGRADEABLE SOFTWARE
Upgradeable software makes the use of new features possible. By altering the firm- ware-software, other digital and analogue operating modes can be enabled, without the need for purchasing a new radio device.
SYSTEMS RADIO
Utilise the X1e in a Hytera XPT or Digital Trunking (Tier III) system to benefit from the advanced features across a larger, intelligent network. Chargeable licences apply.
Features
- Analogue or digital operation
- Versatile voice calls
- Individual call / Group call / Broadcast call / Emergency call
- GPS functions: Retrieve GPS position data / Send GPS text messages
- Different analogue dialling methods:
HDC1200, DTMF, 2-tone and 5-tone dialling, selective call - Vibration alarm for incoming calls
- Automatic cell re-selection (roaming) in IP multi-site systems
- Analogue scrambling
- Upgradeable software
- Lone worker
- Man down
- Multi-site roaming
Technical Specifications
Frequency range
VHF: 136-174 MHz
UHF: 400-470 MHz
UHF2: 450-520 MHz
UHF3: 350-400 MHz
Standard battery
1400 mAh (lithium-ion battery)
Dimensions H x W x D (with standard battery, without antenna)
119.5 × 57 × 20 mm
Weight (With antenna and standard battery)
Approx 240g
Number of channels
1024
Channel spacing
12.5 / 20 / 25 kHz (analogue)
12.5 kHz (digital)
Environmental Specifications
Mil spec: 810 C, D, E, F, G
IP Rating: IP67
Antennas
Hytera AN0375H09
UHF Antenna (350-400MHz)
Hytera AN0485H13
UHF Antenna (450-520MHz/1575MHz)
Hytera AN0156H01
VHF Antenna (147-165MHz/1575MHz)
Hytera AN0140H04
VHF Antenna (136-145MHz/1575MHz)
Audio

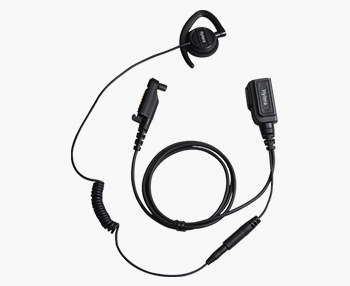

Hytera EHN20
Swivel Style Detachable Earpiece with In-line PTT and Microphone (Black)

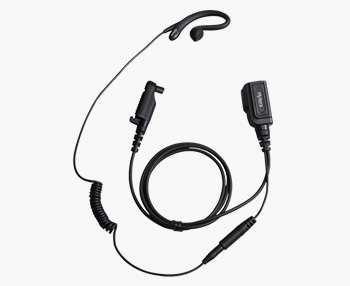

Hytera EHN21
C-Style Detachable Earpiece with In-line PTT and Microphone (Black)

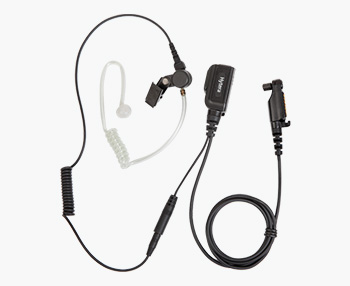

Hytera EAN22
Earpiece with Acoustic Tube and Detachable In-line PTT (Black)

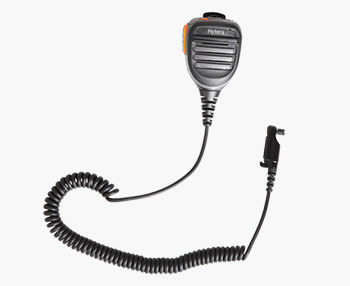

Hytera SM26N1
Remote Speaker Microphone (with emergency button)
Hytera ES-02
Earbud with Acoustic Tube (Receive-Only)
Hytera EH-02
Swivel Style Earpiece (Receive-Only)
Carry Solutions
Hytera NCN011
Nylon Carrying Case
Hytera BRK20
Wall-Mount Installation Kit
Charging and Power

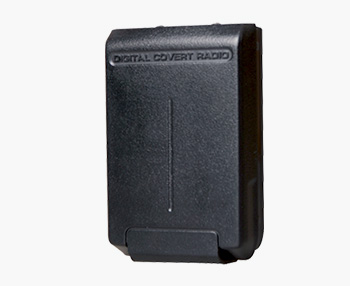

Hytera BL1809
Lithium-Ion Battery (1800mAh)

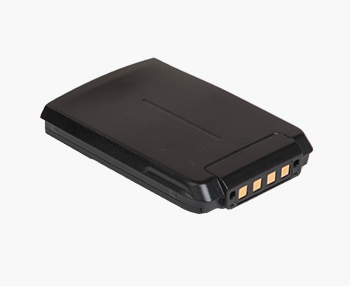

Hytera BL1401
Lithium-Ion Battery (1400mAh)

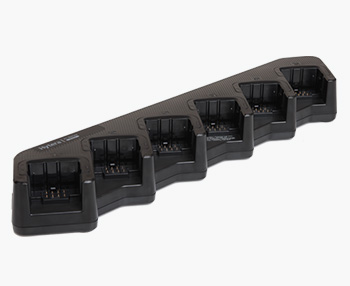

Hytera MCA10
Six Unit charger including power adapter

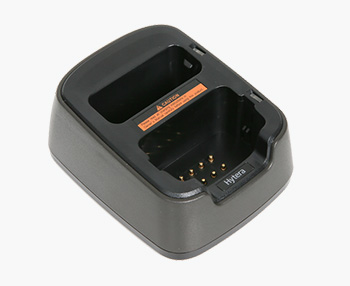

Hytera CH10L16
Dual Charger – Power & Charger

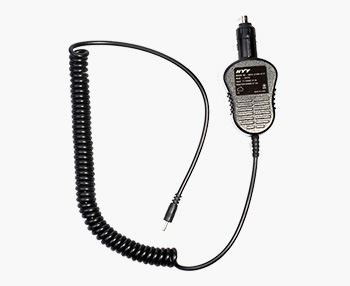

Hytera CHV09
Vehicle Power Adapter
