TC-610

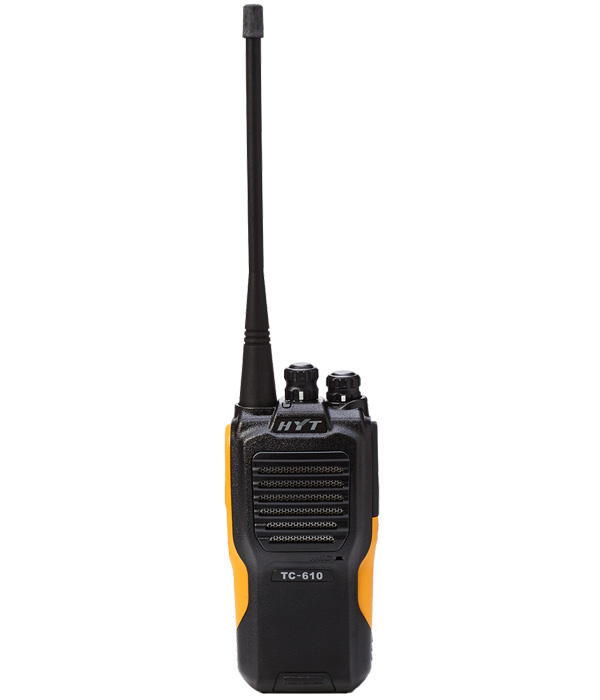

Hytera TC-610 Analogue Two-Way Radio
The Hytera TC-610 Analogue Radio is specifically designed for difficult working environments, delivering reliable, clear communications.
To discuss our full range of solutions get in touch with Audiolink today by giving us a call on 020 8955 1100 or click ‘Request a call back’ button and fill in our enquiry form.
Professional, rugged, analogue two-way radio
The TC-610 handheld analogue two-way radio is specifically designed to tackle harsh working environments, offering outstanding IP66 dust and water protection. The TC-610 will ensure your productivity and communications aren’t hampered by noise or dirt, making it the ideal companion for the construction industry.
CLEAR COMMUNICATIONS
Superior audio quality, even in noisy environments, is delivered via a powerful loudspeaker and noise cancelling technology. Two-pin socket for audio accessories.
DUST-PROOF AND WATERPROOF
Certified IP66, the device is protected against ingress from dust and powerful water jets, ideal for construction sites or outdoor use.
INCREASED COVERAGE
The user can define low or high transmitting power at the press of a button to save the battery or to cover a larger distance.
RELIABLE MECHANICAL DESIGN
The TC-610 is equipped with the HYT battery latch to securely connect the battery and radio, even during extended usage.
HIGH/LOW POWER SWITCHABLE
The user can change to low or high transmitting power at the press of a button to save the battery or to cover a larger communication distance.
Features
Battery saver
The battery save feature is automatically activated if there is no activity on the channel and no operation is performed after a set time.
Low battery alert
If the battery level is running low, the radio will alert the user to recharge the battery.
CTCSS / CDCSS
Set up workgroups/users with unique CDCSS/CTCSS to prevent unwanted conversations on the same frequency.
Intelligent Energy-saving
The battery save feature is automatically activated if there is no activity on the channel and no operation is performed after an extended period.
Programmable via PC
You are able to customise the features of each radio for each user.
Wired clone
Easily copy the features of one radio to another to save time.
Technical Specifications
Frequency range
VHF: 136-174 MHz
UHF: 440-470 MHz
Dimensions H x W x D (With standard 1200mAh battery, without antenna)
119 × 55 × 33 mm
Weight (With standard 1200mAh Li-ion battery and antenna)
Approx 270g
Number of channels
16
Channel spacing
12.5 / 25 kHz
20 / 25 kHz
Environmental Specifications
Mil spec: 810 C, D, E, F
IP Rating: IP66
Antennas

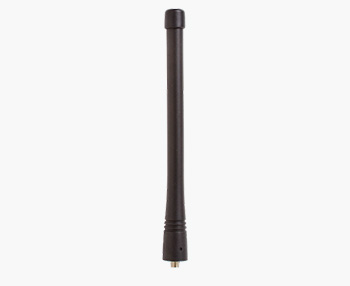

Hytera AN0160H13
VHF Antenna (146-174Mhz)

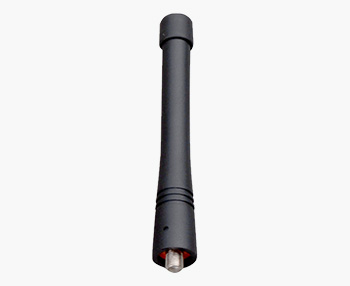

Hytera AN0160H01
VHF Antenna (145-175Mhz)
Audio
Hytera ES-02
Earbud with Acoustic Tube (Receive-Only)
Hytera SM08M3
Remote Speaker Microphone With 3.5mm Audio Jack and Swivel Clip
Hytera EHM15
D-Style Earpiece with In-line PTT and Microphone (Black)
Hytera EH-02
Swivel Style Earpiece (Receive-Only)
Carry Solutions
Hytera RO03
Wrist Strap
Hytera BC12
Belt clip
Hytera NCN011
Nylon Carrying Case
Charging and Power
Hytera MCA02
Six Unit charger including power adapter
Hytera CH10A03
Rapid-Rate Charger
Hytera CHV09
Vehicle Power Adapter
Hytera BL2001
BL2001 Battery
Hytera BL1204
BL1204 Battera
| Manufacturer | Hytera |
|---|---|
| Hytera | TC610 |
