Hytera PD665 Digital Two-Way Radio
The Hytera PD665 digital two-way radio offers a sleek, innovative handset for professional radio users. With a lightweight, crafted metal design, supporting both digital and analogue technology, the PD6 Series is a popular feature rich device.
To discuss our full range of solutions get in touch with Audiolink today by giving us a call on 020 8955 1100 or click ‘Request a call back’ button and fill in our enquiry form.

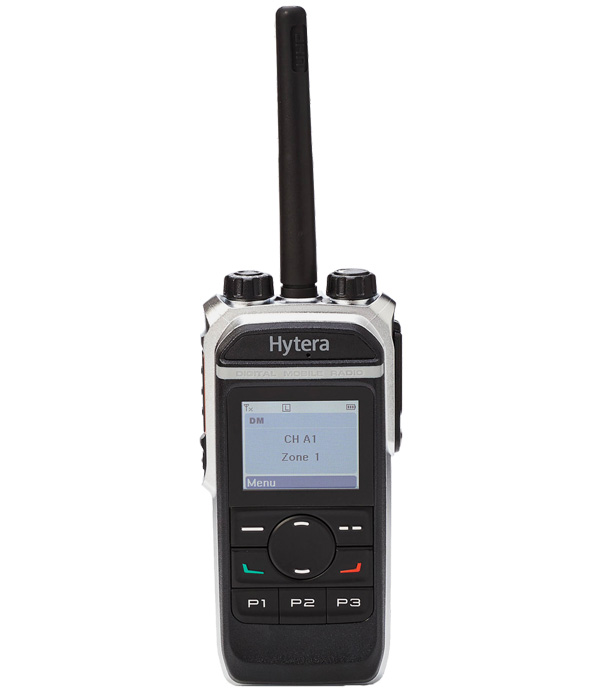

Hytera PD665 Slim, professional, digital two-way radio.
Delivering superior voice clarity and enhanced encryption, the Hytera PD665 handheld digital two-way radio is a compact, high quality device with LCD screen and programmable keys. At just 27mm thick and 310g, this radio is a popular choice and ideal for long shifts.
Request the PD665(G) variant for GPS and Man Down.
LONGER BATTERY LIFE
With the 1500 mAh standard lithium-ion battery, the PD6 series handsets can achieve an operating time in digital mode of at least 16 hours. With the optionally available 2000-mAh battery, this could be up to 20 hours. The PD6 series can be operated in TDMA Direct Mode and Pseudo-Trunk mode. This assignment of the available bandwidth with double the number of channels leads to a significant easing of the increasing shortage of frequencies in the operation of DMR mobile radio systems compared to analogue mobile radio systems.
EXPANDED FREQUENCY RANGE
The frequency range in UHF is offered from 400 MHz to 527 MHz.
SUPPORT OF ANALOGUE AND DIGITAL MOBILE RADIO
The PD6 series was developed in compliance with the ETSI DMR standard. Digital Mobile Radio (DMR). The handheld radios support the conventional DMR operation and can also be used in analogue mode. This makes the terminals of the PD6 series the ideal companion for the migration to digital mobile radio.
SYTEM SOLUTION FOR LARGER NETWORKS
In addition to conventional DMR (DMR Tier II) and analogue modes, all PD6 radios support operation in DMR trunked (Tier III), XPT digital trunking and MPT 1327.
Features
- Every radio of the PD6 series is also available with GPS (denoted by the model number followed by a ‘G’). Variants with GPS support GIS applications such as AVL, telemetry and also include a Man Down function
- Encryption with the encryption algorithm ARC4 (40 bit) in accordance with
- DMRA or with optional algorithms AES128 and AES256
(128 and 256 bit) - Expansion interface for applications
- Priority interrupt
- Leasing function
- Versatile voice calls: Individual call, group call, broadcast call, emergency call
- Bluetooth accessories available with optional adapter
- Roaming
The Hytera PD6 Series Two-Way Radios include:
PD605 / PD605G
PD665 / PD665G
PD685 / PD685G
Technical Specifications
Frequency range
VHF: 136-174MHz
UHF: 400-527MHz
Standard battery
1500 mAh (lithium-ion battery)
Dimensions H x W x D
119 x 54 x 27mm
Weight (With antenna and standard battery)
Approx 310g
Number of channels
1024 (64 zones with 256 channels per zone)
Channel spacing
12.5 / 25 kHz (analogue)
12.5 kHz (digital)
Environmental Specifications
Mil spec: 810 C, D, E, F, G
IP Rating: IP67
Antennas
Hytera AN0485H13
UHF Antenna (450-520MHz/1575MHz)
Hytera AN0156H01
VHF Antenna (147-165MHz/1575MHz)
Hytera AN0140H04
VHF Antenna (136-145MHz/1575MHz)
Audio
Hytera EHM15
D-Style Earpiece with In-line PTT and Microphone (Black)
Hytera ES-01
Earbud without Earpiece (Receive-Only)
Hytera EH-02
Swivel Style Earpiece (Receive-Only)
Hytera SM26M1
Remote Speaker Microphone (without emergency button)
Carry Solutions
Hytera BC24
Swivel Belt Clip
Hytera NCN011
Nylon Carrying Case
Hytera BC08
Belt Clip
Hytera BRK20
Wall-Mount Installation Kit
Charging and Power
Hytera BL2010
Lithium-Ion Battery (2000mAh)
Hytera BL1504
Lithium-Ion Battery (1500mAh)
Hytera MCA08
Six-Unit Charger Including Power Adapter
Hytera CH10A07
MCU Rapid-Rate Charger
Hytera CH10A06 and PS2005
Dual Charger with two units designed to charge both Lithium-ion & NI-MH batteries.
| Manufacturer | Hytera |
|---|---|
| Hytera | PD665 |
