PD415
Hytera PD415 Digital Two-Way Radio
The Hytera PD415 digital two-way radio supports both analogue and digital operation, ensuring a smooth migration to digital radio for any user.
To discuss our full range of solutions get in touch with Audiolink today by giving us a call on 020 8955 1100 or click ‘Request a call back’ button and fill in our enquiry form.

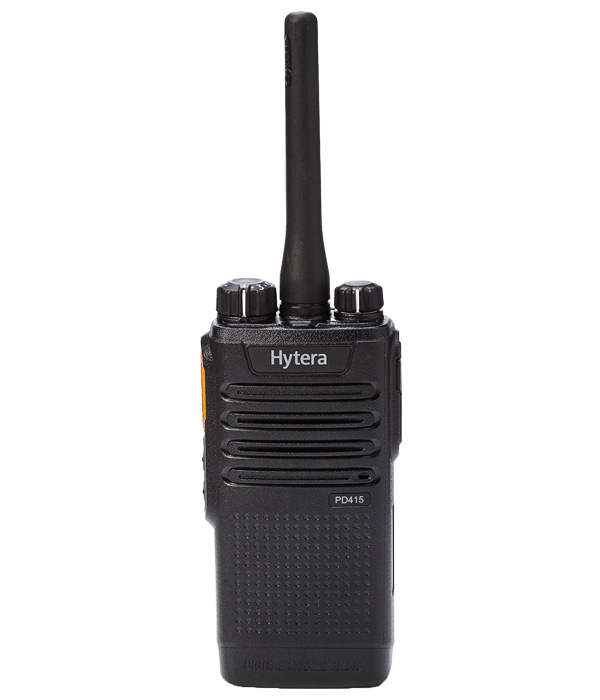

Hytera PD415 conventional digital two-way radio.
Robust and reliable, the Hytera PD405 handheld digital two-way radio offers a simple communication solution, ideal for users operating in manufacturing, facilities management or education environments.
INTEGRATED RFID READER
The optional Hytera RFID tags and checkpoints, transmitting this information back to the Hytera Patrol software by radio signal. The ideal solution for security and patrol requirements.
PATROL SYSTEM WITH THE PD415
The Hytera Patrol system is an application that uses the data captured via RFID (PD415 only). Upload your site map and plot your checkpoints, then once your staff have been assigned a radio tag, the patrol system will monitor and log their journey in real-time when they tag any asset checkpoint.
IMPRESSIVE VOICE QUALITY
With embedded digital technology, the PD4 series produces outstanding voice quality, even in noisy environments, and at the outer perimeters of radio coverage.
IMPROVED UTILISATION OF THE FREQUENCY SPECTRUM
Thanks to the TDMA method, DMR radios make it possible to configure the available bandwidth with double the channel capacity of conventional analogue radio. This has a clear mitigating effect on increasing spectrum scarcity.
MIXED ANALOGUE AND DIGITAL CHANNEL
This function ensures that the PD4 radios can detect both analogue and digital signals and change automatically to the relevant operating mode.
ROBUST
Both radios are dust and water-resistant according to IP55 (PD405) or IP54 (PD415) and meet the US military standard MIL-STD-810 C/D/E/F/G.
Features
- Different operating modes: analogue, DMR Tier II or mixed
- Digital or analogue channel search
- Supports pre-programmed text message transmission
- TDMA direct mode allows up to two simultaneous calls, even without repeater
- VOX (voice-controlled send keying)
- Emergency alarm
- Individual call, group call and all call
- Priority Interrupt, remote monitor, radio enable and disable (all via chargeable license)
- Hytera Pseudo Trunking and Basic Encryption (via chargeable licence)
- Radio Registration Service (RRS), Radio Check, Alert Call
The Hytera PD4 Series Two-Way Radios include:
PD405 DMR Digital Portable
PD415 DMR Digital Portable
Technical Specifications
Frequency range
VHF: 136-174MHz
UHF1: 400-470MHz
UHF2: 450-520MHz
UHF3: 350-400MHz
Battery
1500mAh (Standard)
2000mAh Li-ion (Option)
Dimensions H x W x D
54 x 112 x 28mm
Weight (With 1500mAh Li-ion battery)
Approx 270g
Number of channels
256 (128 analogue + 128 digital)
Channel spacing
12.5 / 25 kHz
Environmental Specifications
Mil spec: 810 C, D, E, F, G
IP Rating: IP54
Antennas
Hytera AN0495W04
UHF Antenna (470-520MHz)
Hytera AN0435W09
UHF Antenna (400-470MHz)
Hytera AN0155H08
VHF Antenna (136-174MHz/1575MHz)
Hytera AN0141H06
VHF Antenna (136-147MHz)
Audio
Hytera EHM15
D-Style Earpiece with In-line PTT and Microphone (Black)
Hytera ES-01
Earbud without Earpiece (Receive-Only)
Hytera EH-02
Swivel Style Earpiece (Receive-Only)
Hytera SM26M1
Remote Speaker Microphone (without emergency button)
Carry Solutions
Hytera NCN011
Nylon Carrying Case
Hytera BC08
Belt Clip
Hytera BRK20
Wall-Mount Installation Kit
Charging and Power
Hytera BL2010
Lithium-Ion Battery (2000mAh)
Hytera BL1504
Lithium-Ion Battery (1500mAh)
Hytera MCA08
Six-Unit Charger Including Power Adapter
Hytera CH10A07
MCU Rapid-Rate Charger
Hytera CH10A06 and PS2005
Dual Charger with two units designed to charge both Lithium-ion & NI-MH batteries.
| Manufacturer | Hytera |
|---|---|
| Hytera | PD415 |
